How to Build a DIY Micro Quarter Pipe (With Ramp Plan)

Author:

Billy is a long-time skateboarder who shares tips on learning how to skateboard, building skate obstacles, and more.

What Is a Micro Ramp?

A micro ramp consists of two smaller-than-average-sized quarter pipes, 2 feet high by 4 feet wide, facing each other. This is the kind I built for myself, and I'm going to show you how to build your own for your garage or basement.

In order to make the process really easy to follow, I've broken down the steps and included pictures, videos, and my own experience. I'll also tell you where to find the materials you need, and I'll share tips on how to make a great set of ramps.

Note: You can build your pipes to be any size you want, but note that this tutorial and materials list are meant for 2 foot by 4 foot quarters.

Indoors or Outdoors?

This micro ramp should be built indoors where it's safe from the elements. But if it is going to be outside, you should protect it as best you can. Pressure-treated lumber, some paint, and a tarp should help.

If you go that route, however, be careful. Working with treated lumber can be dangerous because of the poisonous chemicals used to treat the wood.

In This Article

Below, you'll find detailed information and instructions for each of these topics:

  • Which supplies and tools you'll need for the job.
  • How to plan the cuts for your quarter pipe sides and deck on just two pieces of plywood.
  • How to draw and cut the transition onto your plywood.
  • A list of all the materials you will need to measure and cut.
  • How to frame the ramp.
  • Information about coping—where to buy and how to cut, drill, and attach it.
  • How to cover the ramp in layers of ply and masonite.
  • Building steel thresholds.
A micro ramp consists of two micro quarter pipes, 2 feet high by 4 feet wide, facing each other inside a garage or basement.

A micro ramp consists of two micro quarter pipes, 2 feet high by 4 feet wide, facing each other inside a garage or basement.

Step 1: Gather Your Tools

Here's what you will need:

  • Tape measure
  • Pencil or pen
  • Chalk line
  • Cordless drill
  • Phillips bit
  • Assorted drill bits
  • Circular saw
  • Jigsaw

Step 2: Gather Your Materials

Where to Buy Supplies

  • Home Depot (or any home improvement store): These stores will carry the wood and hardware that you need. If you live in the United States, you might find the steel here, too.
  • Metal Supermarkets: They will have the coping and threshold material you need for this set of ramps.

Materials: Lumber, Plywood, and Steel

LumberPlywood / MasoniteSteel

Qty. • Type • Size

Qty. • Type • Size

Size

11 • 2x4s • 3'10½"

2 • 3/4" Ply • (see photo)

1 • Pipe • 4'



1 • 3/4" Ply • 2' x 4'

1 • Steel Plate • 4'



1 • 3/8" Ply • 3'9" x 4'0





1 • 3/8" Ply • 4'0 x 4'1"





1 • 1/4" Masonite • 3'6" x 4'



Step 3: Lay Out the Plywood

The drawing below illustrates how to cut the quarter pipe sides and deck from a single sheet of 3/4" plywood.

If you're building two of these micro quarter pipes like I did, then you can get both deck pieces out of one piece of plywood.

You will need another sheet for your other two sides.

After all your side pieces are cut, what's left from your 3/4" plywood is a 2'×8' piece that could be used to build a skate ledge or grind box.

Before cutting anything though, get the hard part out of the way first by drawing the transition.

Layout showing how to cut the quarter pipe sides and deck from a single sheet of 3/4" plywood.

Layout showing how to cut the quarter pipe sides and deck from a single sheet of 3/4" plywood.

Step 4: Draw the Transition

There are different ways of doing this, but I'll show you the way I was taught to draw transition.

  1. Grab an 8' long 2×4 and mark two lines.
  2. Three inches from one end, mark a line. In the middle of this line, drill a 3/8" hole (approximately the diameter of a pencil).
  3. Measure out the distance of the transition radius, which is 5'6" from the first line you just drew (5'9" from the same end). The center of this second line is where you're going to place a screw, but don't go all the way through the 2×4 just yet.
  4. Take two pieces of 3/4" plywood and lay them down next to each other so they are touching (refer to the drawing below).

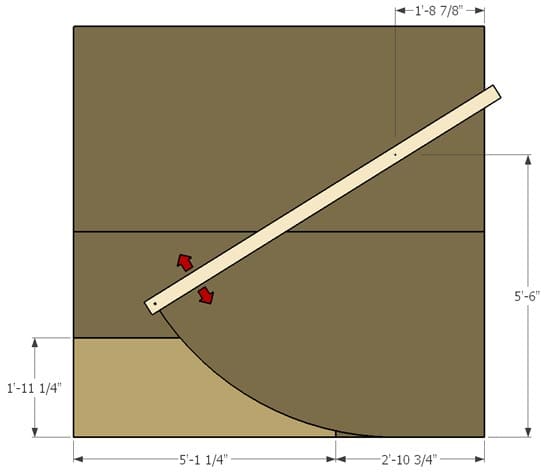

  5. Using the 2×4 you made earlier, screw down the screw into the 3/4" plywood (refer to the drawing below).
  6. Place a pencil in the 3/8" hole you drilled and draw a radius. Use the 2×4 as a guide for your pencil until you can visibly see the transition radius. Next, measure and mark the height and length of the bottom: height: 1'11¼"; length: 5'1¼".
  7. Draw the spot for the coping and bottom details (refer to drawing below).
  8. Measure 2' from the back for the deck and 7/8" down for the coping.

Note: This is the measurement if you're using a two-inch diameter piece of coping. The drawing below shows a measurement of 1¼" but if you are building a ramp like mine, only cut down 7/8".

Three inches from one end, mark a line. In the middle of this line, drill a 3/8" hole. Measure out the distance of the transition radius, which is 5'6" from the first line you just drew (5'9" from the same end).

Three inches from one end, mark a line. In the middle of this line, drill a 3/8" hole. Measure out the distance of the transition radius, which is 5'6" from the first line you just drew (5'9" from the same end).

Take two pieces of 3/4" plywood and lay them down next to each other so they are touching, as shown here.

Take two pieces of 3/4" plywood and lay them down next to each other so they are touching, as shown here.

Step 5: Cut the Transition

  1. Using a jigsaw and following the lines you drew, cut out your first transition piece. Keep things neat, because the deck for this quarter pipe will also come from this piece of 3/4" plywood.
  2. Cut out your first transition piece and then use it as a template to trace onto the plywood and cut out the other side.
  3. After the sides and deck are cut, you can begin cutting 2×4s, or continue with the remaining plywood pieces that will be used to cover the ramp.
This diagram shows how to cut the transition.

This diagram shows how to cut the transition.

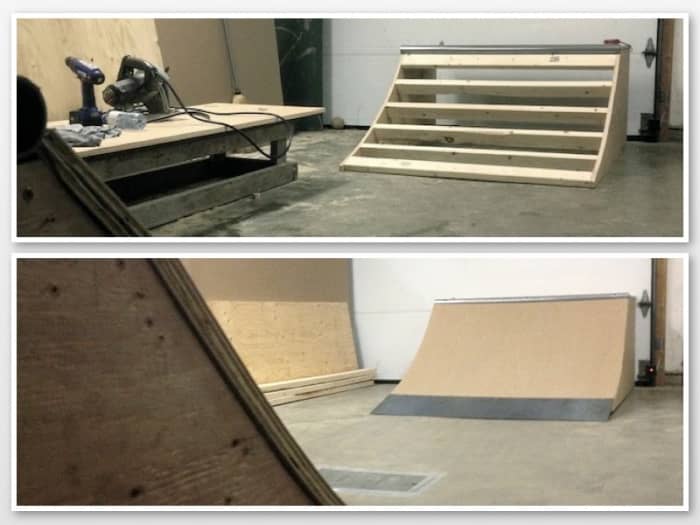

Step 6: Frame the Ramp

After you've cut the plywood and lumber, you can begin framing the ramp.

  1. Start by attaching the bottom and top 2×4s.

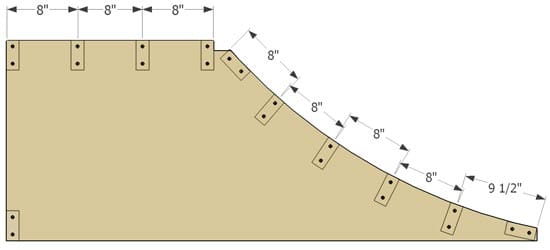

  2. Make marks where the remaining pieces will go and then continue framing the deck and riding surface. Most 2×4s will be 8" on center (refer to drawing below for exceptions).
Start by attaching the bottom and top 2×4s.

Start by attaching the bottom and top 2×4s.

Make marks where the remaining pieces will go and then continue framing the deck and riding surface. Most 2×4s will be 8" on center.

Make marks where the remaining pieces will go and then continue framing the deck and riding surface. Most 2×4s will be 8" on center.

Continue framing the deck.

Continue framing the deck.

Step 7: Cut and Drill the Steel Coping

The coping size I choose for these ramps was 2" outside diameter with a 1/8" thick wall.

Tips on Cutting and Drilling Steel

  • If you buy your steel at the right place (e.g., Home Depot or Metal Supermarkets), they will cut your steel for you. All my steel pieces were cut for me. The only thing I had to do myself was drill holes in the coping and threshold.
  • If you don't have the proper tools, my advice is to bring your steel pieces to a steel fabrication shop in your area. Or if you know someone who works in a place like that, have them help you out.
  • If you are going to attach the coping the way I've done it, there are going to be six holes in each piece of coping. That is a lot of drilling. To make this easier on myself, I gave my buddy the pieces so he could use the drill press at his work.
  • It's also possible to use a cordless drill with a couple of good drill bits to get the job done.

Step 8: Attach the Coping

The way I'm attaching the coping is by using screws.

  1. Marking the pipe about 3" in from each end and then once in the middle.
  2. Drill a 3/8" hole on the outside of the pipe and a 3/16" hole on the inside.
  3. After your holes are drilled, place the coping in the spot you made earlier. Feed a screw through the outside 3/8" hole and place it into the 3/16" inner hole.
  4. With a cordless drill, screw it down and go to the next hole.

Note: If you're wondering about the holes interfering with your skating, don't worry. As long as the outside hole is no larger than 3/8", you will be fine.

Ramp coping

Ramp coping

Step 9: Cover the Ramp

  1. Start with the deck. Grab one of your 3/4" plywood pieces and screw it into the top of the ramp, spacing your screws about a foot apart.
  2. Use a tape measure and mark where each screw will go. This way you keep it neat, and it looks better that way.
  3. Now it's time to cover the riding surface. Grab your first sheet of 3/8" plywood. If you already cut this sheet, you should have two pieces—a first and second layer (first layer is 3'10" × 4'; second layer is 4' × 4'2").
  4. Attaching these pieces of plywood to the ramp is no easy task. To make it easier, you need to soak your plywood sheets with water before attempting to attach them to the ramp. We did that for these quarter pipes. It probably wasn't enough though, because it was still tough to bend the sheets.
  5. Start at the top of the ramp and place the screws about a foot apart as you work your way to the bottom. Be careful to hit the studs when you're attaching your sheets.
Cut the plywood sheets to make the ramp covering.

Cut the plywood sheets to make the ramp covering.

Step 10: Attach Second Layer and Masonite

  1. After attaching the first piece of 3/8" plywood, move on to the next. Take the piece of 4'0" x 4'2" and place it over the top the previous layer.
  2. Again, make sure to screw into the 2×4s and not on top other screws. Use a chalk line to mark where the studs are located.
  3. With both pieces of the 3/8" sheets attached, grab your piece of 1/4" masonite, which will be your third and final layer (masonite should be 3'6" by 4'0").
  4. Mark out where each screw will be and then use a countersink bit or 3/8" drill bit to countersink each hole so the screws will be flush with the surface of the ramp.
  5. Once the masonite is on, you can check the coping placement. If it's not to your liking, you can make some adjustments.

Step 11: Build the Steel Threshold

  1. If built properly, you should have about 1 inch between the masonite and the ground. This is where you place the 4' x 1', 3/16" thick sheet metal.
  2. Drill a 3/16" hole approximately 2 inches in from each end and one in the middle.
  3. After all the holes are drilled, you are going to want to countersink each by using a countersink bit. You can also use a 3/8" drill bit. The purpose is to drill down just enough so the screw heads are flush. This way you won't snag a screw if you fall.
Steel threshold

Steel threshold

Skate and Create

Well, there you have it, a brand-new micro ramp!

Leave a comment below. Let me know of any issues you have, questions, or concerns. Good luck and happy building!
